مكان المنشأ:
خفى، CN
اسم العلامة التجارية:
WNK
إصدار الشهادات:
Explosion proof, SGS, ISO9001
رقم الموديل:
WNK6T

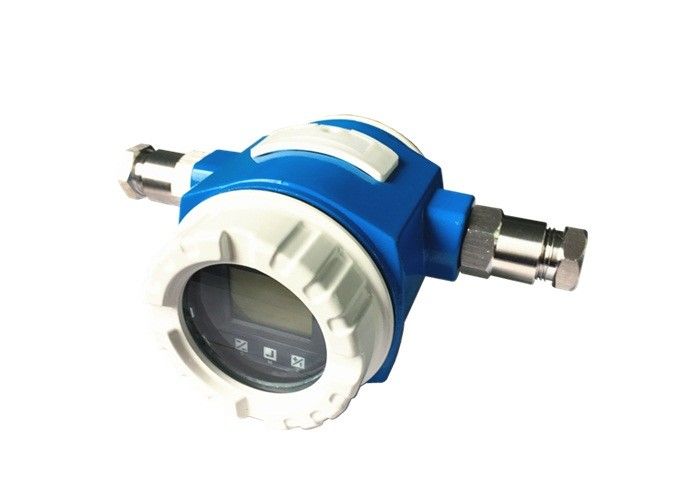

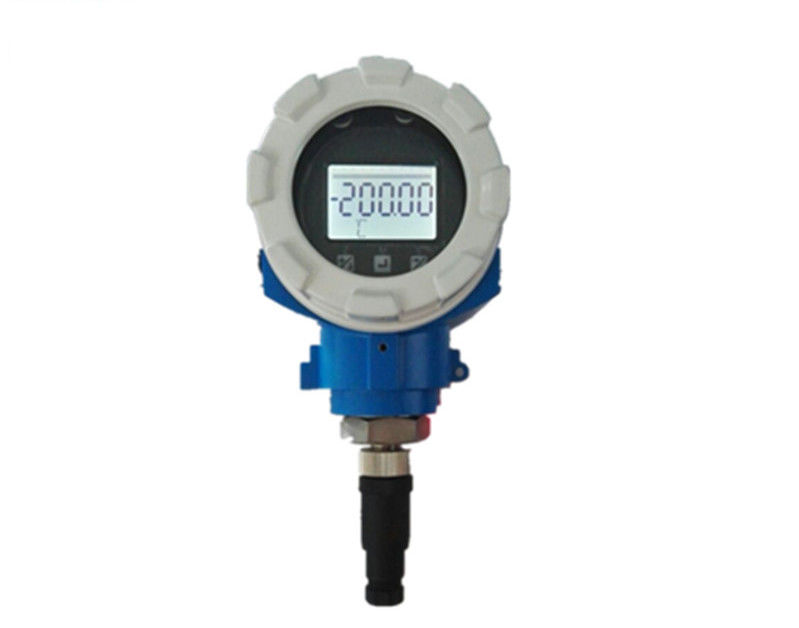

Universal Input Smart Temperature Transmitter 4~20mA Hart Output With Explosion Proof
WNK6T smart temperature transmitter is high performance product from WNK. It is universal input temperature transmitter, with output choices of 4~20mA, 4~20mA+Hart, Modbus or Profibus-Pa.
Every transmitter is ambient temperature compensated before shipped out, to ensure transmitters high accuracy, minimum drift in wide working temperature range and good long-term stablity.

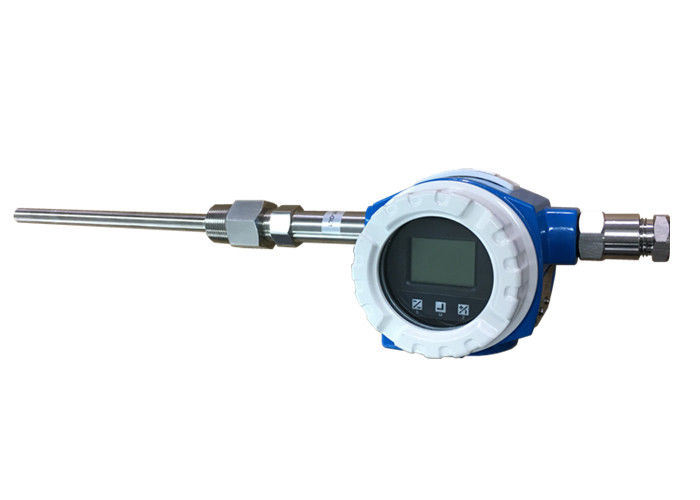

Our transmitters are easy for on-site installation, they can be integratively installed with temperature sensor, or installed away from sensor. The solid housing is with global universal wire connector, and the aluminum shell of double chamber structure ensures regular work of the transmitter in dangerous occasions.
Quick Information:
1. 4~20mA, 4~20mA with Hart or Profibus PA outputs are available
2. High accuracy: ±0.1℃ for RTD; ±1℃ for TC, code end accuracy ±2℃
3. Good long-term drift<0.1/year
4. LCD display, Menu-guided operation.
5. Install easily, more flexiable
6. To reduce the overall cost of installation,maintenance and running.
7 Self-diagnostics function
Detailed Technical Parameters:
| Measuring media | liquid, gas and steam | ||
|
Measuring range |
-270~800 ℃ (PT100 thermal resistor) | ||
| 0~1300℃, (Thermocouple K) | |||
| Input | Thermocouple, RTD, MV, Resistive sensor | ||
| Output signal | 4~20mA/Hart/Profibus PA | ||
| Display | LCD | ||
| Power supply range | 9~45V (9~24V, Ex) | ||
| Digital Accuracy | ±0.01℃, PT100 input | ||
| Internal cold end compensation error | <0.25℃±0.1%/10℃ | ||
|
Temperature drift |
±0.05%/10℃full scale range | ||
| 0.1% between-10°C to 60°C | |||
| Effect of power supply on range | <0.005%/V full-scale range | ||
| Long term drift | <0.1/year | ||
|
Ambient temperature |
Ambient temperature |
Storage temperature |
|
| T4 | Safe operation(T6) | ||
| -40...85℃ | -40...60℃ | -40...95℃ | |
| Protection Class | IP66/67 | ||
| Relative humidity | ≤98%, condensation allowed | ||
| Electromagnetic capability | Accordance with EN 61 326 | ||
Competitive Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
