On-site Smart Temperature Transmitter PT100 Thermowell Profibus-Pa Protocol

On-site Smart Temperature Transmitter PT100 Thermowell Profibus-Pa Protocol

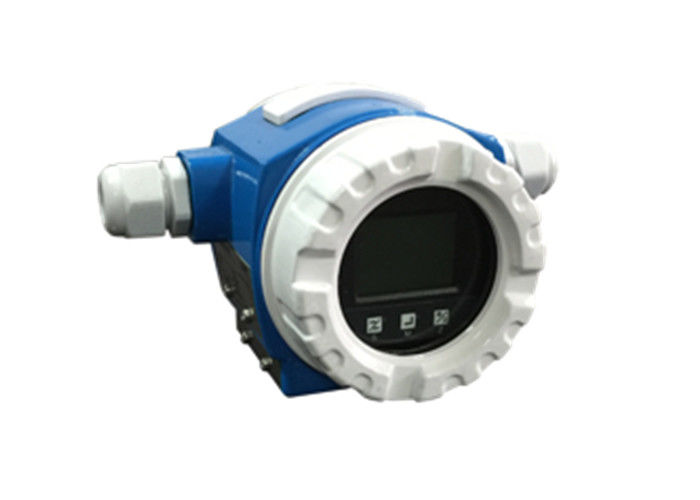

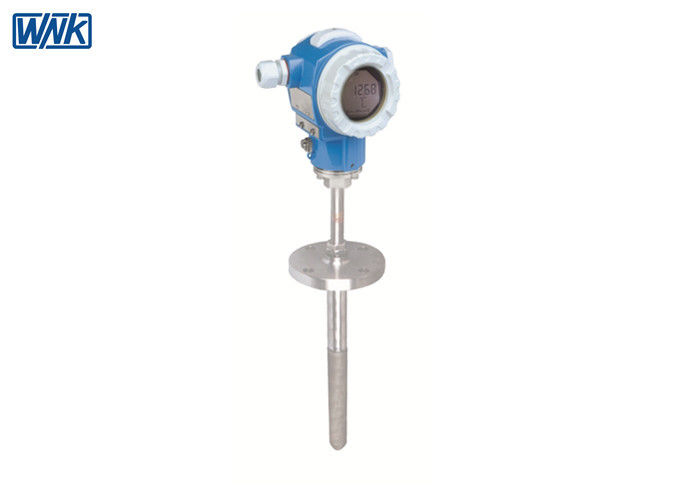

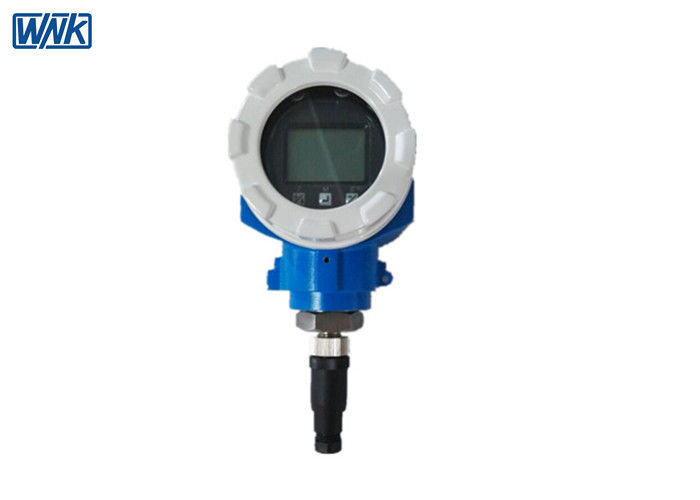

WNK6T smart temperature sensor transmitter is high performance product from WNK. It is universal input including RTD, TC, MV, ohms, and with outputs of 4~20mA, Hart, Modbus, Profibus-Pa.

Transmitters adopt specific integrated circuit digital technology to achieve the best consistency of accuracy and signal. Every transmitter has been done with ambient temperature compensation before shipped out, to ensure transmitters highest accuracy and mini drift in wide working temperature range.

Our transmitters are easy for on-site installation, they can be integratively installed with temperature sensor, or installed away from sensor. The solid housing is with global universal wire connector, and the aluminum shell of double chamber structure ensures regular work of the transmitter in dangerous occasions.

Quick Information:

Detailed Technical Parameters:

Competitive Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
