مكان المنشأ:
خفى، الصين
اسم العلامة التجارية:
WNK
إصدار الشهادات:
CE, SGS, ISO9001
رقم الموديل:
WNK80MA
فيديو

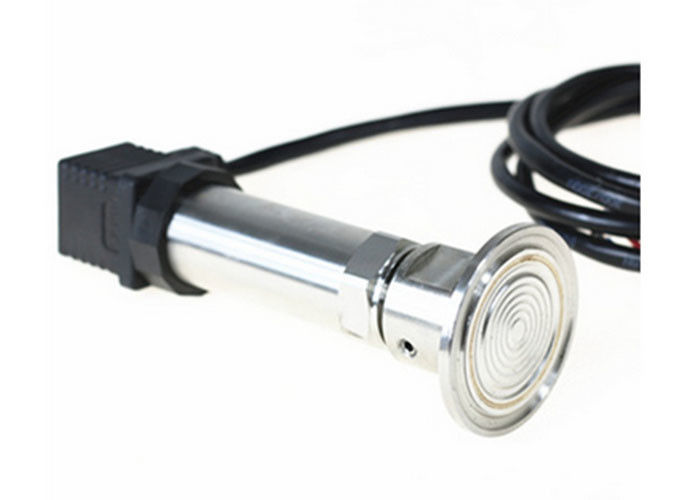

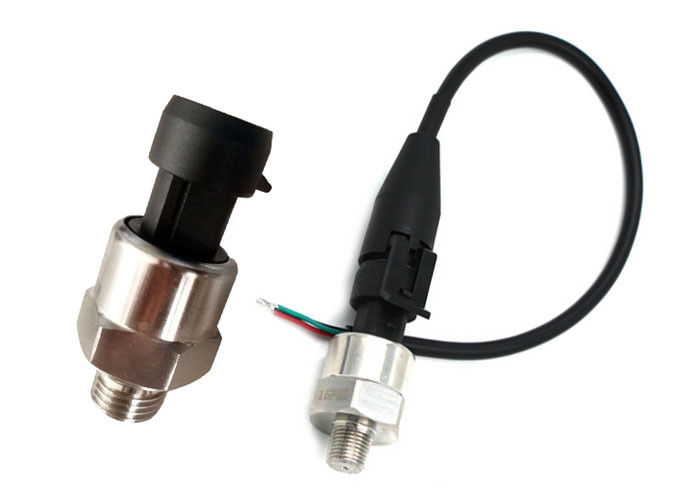

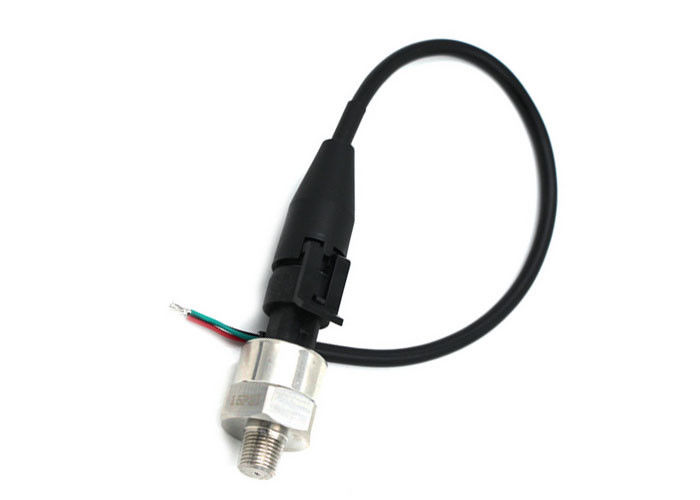

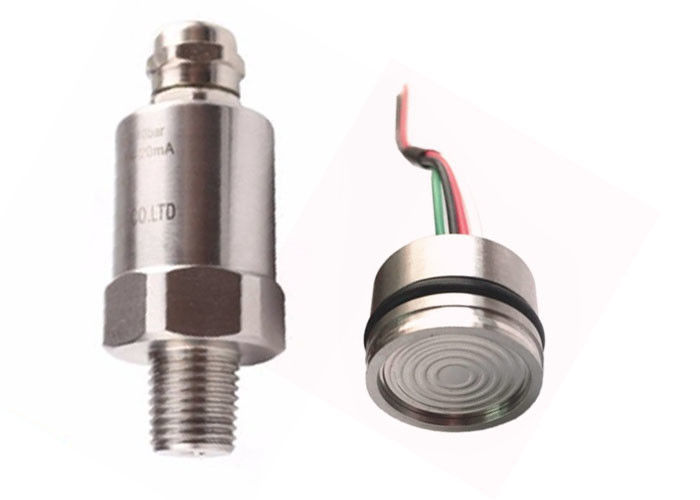

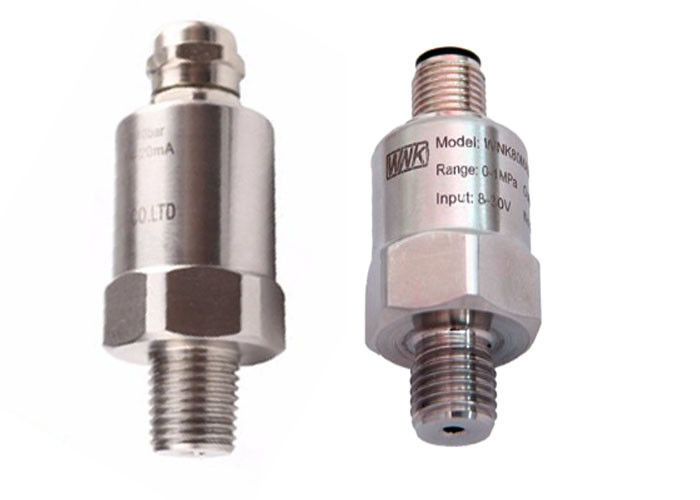

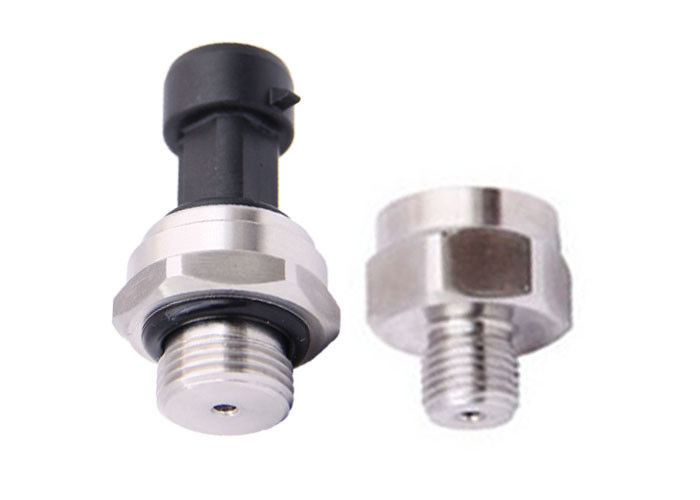

Digital Hydraulic Water Treatment Compact Pressure Sensor Pressure Transmitter
Description
WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement
|
Applicable media
|
Liquid, Gas
|
|
Pressure range
|
0-7kPa~350bar
|
|
Pressure measurment
|
Gauge Pressure, Absolute pressure, Sealing pressure
|
|
Output
|
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
|
|
Accuracy(linearity,Hysteresis and Repeatability)
|
0.5%F.S.(Typical)
|
|
Power supply
|
24VDC/12VDC/5VDC/3.3V
|
|
Compensation temperature
|
-20~85ºC
|
|
Ambient temperature
|
-40~125ºC
|
|
Working temperature
|
-40~125ºC
|
|
Temperature drift(zero)
|
±0.15% F.S. (-20~85ºC)
|
|
Temperature drift(full range)
|
±0.15% F.S. (-20~85ºC)
|
|
power(electrical) connect
|
Parkard, M12, DIN43650, Cable outlet
|
|
Mechanical connection
|
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
|
|
Housing material
|
304 stainless steel(inner core is 316 stainless steel)
|
|
Protection
|
IP65
|
Application:
For oil,fuel,diesel,gas,water or air pressure.Can be used in oil tank,gas tank,diesel tank etc.
