مكان المنشأ:
خفى، الصين
اسم العلامة التجارية:
WNK
إصدار الشهادات:
CE, SGS
رقم الموديل:
WNK55
فيديو

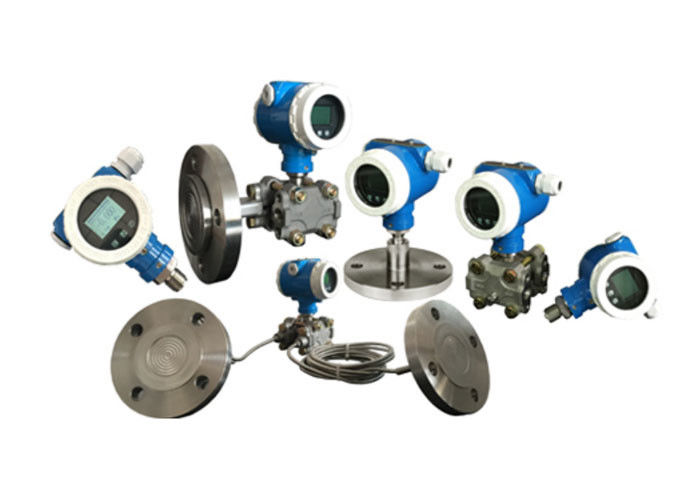

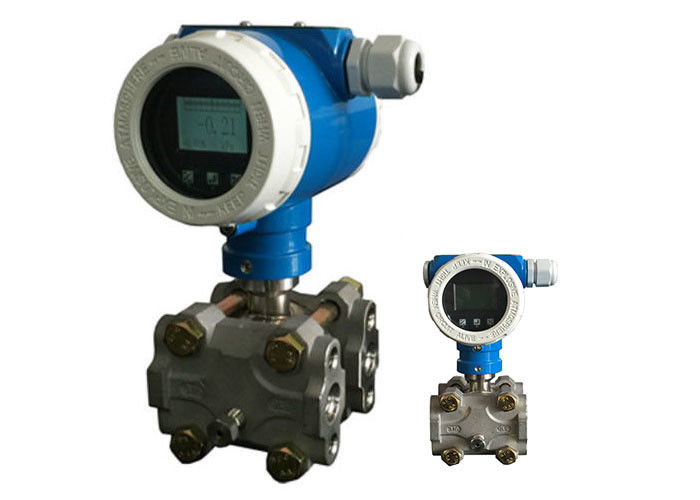

Explosion Proof Industrial Measure Smart Pressure Transmitter with 4-20ma Output
Product Features
1. High accuracy: up to 0.075%FS;
2. Output: 4~20mA, Hart, Profibus-Pa
3. Excellent long-term stability: long-term drift ≤±0.15%URL for 5 years
4. Range ratio: 100: 1;
5. Module design: C
8. High Temperature Resistance: Highest temperature up to 280℃ with diaphragm sealing;
9. High Pressure Ability: Max Pressure up to 700bar.
Applications
1. Gauge & absolute pressure measurement in gases, steam or liquids in all areas of of engineering process and measurement.
2. Level, volume or mass measurement in liquids.
3. Working with detecting element, measure the flow of gases, steam and liquid flow.( volume and mass flow)
4. High pressure up to 700bar.
Specifications
| Applicable media | liquid, gas and steam |
| Pressure range | -0.1Kpa - High Pressure up to 700 Bar |
| Accuracy | 0.075%, higher on request |
| Stability | ±0.15% of URL for 5 years |
| Temperature drift | ±0.03% of URL/10ºC |
| Output signals | 4~20mA, Hart, Profibus-PA for option, FF per request |
| Display | LCD, or pointer optional |
| Housing material | Aluminum14 |
| Mechanical connection | M20×1.5;G1/2;1/2NPT |
| Protection class | IP66/67 |
| Ex-proof | Exia II CT4, other option per request |
| Power Supply | 10.5-55V DC 10.5-30V DC |
| Ambient temperature | -40 to 85ºC,-40 to 80ºCfor LCD header |
| Storage temperature | -45 to 85ºC,-40 to 80ºC for LCD header ; |
| Measurement | with display: 95*126*52 (mm) |
| without display: 95*115*52 (mm) | |
| Net Weight | 4kg (without bracket or process connection) |
