مكان المنشأ:
انهوى، الصين
اسم العلامة التجارية:
WNK
إصدار الشهادات:
ISO,Exia
رقم الموديل:
WNK808B
فيديو

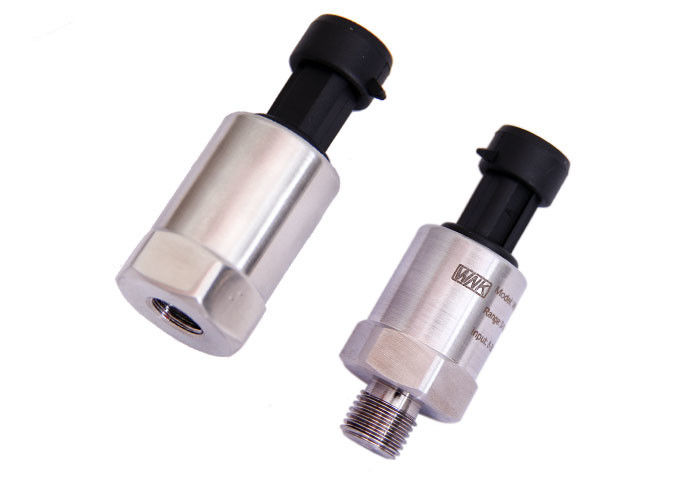

Model 268 Air Differential Air Pressure Sensor Pressure Transmitter for Wind/Dry Air
WNK268 ( New Model WNK808B ) intelligent pressure transmitter is assembled with aluminum housing and stress isolation technology. Integrated structure design lead to compact layout. With intelligent compensation technology, it is suitable for wind pressure,wind speed & flow measurement. It is widely used in various industrial fields as well as intelligent building and other construction projects, such as power plant boiler primary air,secondary air measuring, mine ventilation,indoor ventilation, pressure of fan, air duct pressure, Metro wind pressure and environment wind pressure test.
Application
It is the best micro pressure measurement equipmenttextile for textile machinery,natural gas pipeline monitoring,dust removal system, HVAC,clean laboratory and medical equipment etc.
Specifications:
|
Applicable media
|
Gas, Air, Wind
|
|
Pressure Measurement
|
Gauge pressure, Differential pressure, Negative, Vacuum
|
|
Pressure range
|
-10Pa~100Pa, -100kPa~+100kPa
|
|
Accuracy
|
0.2%, 0.5%
|
|
Stability
|
0.5%F.S/Year
|
|
Maximum static pressure
|
100kpa
|
|
Max overload
|
250% of sensor range
|
|
Output signals
|
4~20mA 1-5V
|
|
Housing material
|
Aluminum14
|
|
Induct Pressure Connection:
|
M 8x1 female or Ø 8 dowel connection
|
|
|
EEX ia:10.5~30 V DC
Non-explosion: 10.5~45V DC
|
|
Ambient temperature
|
-40~85℃
|
|
Compensation temperature
|
-10~70℃
|
|
Working temperature
|
-10~70℃ |
