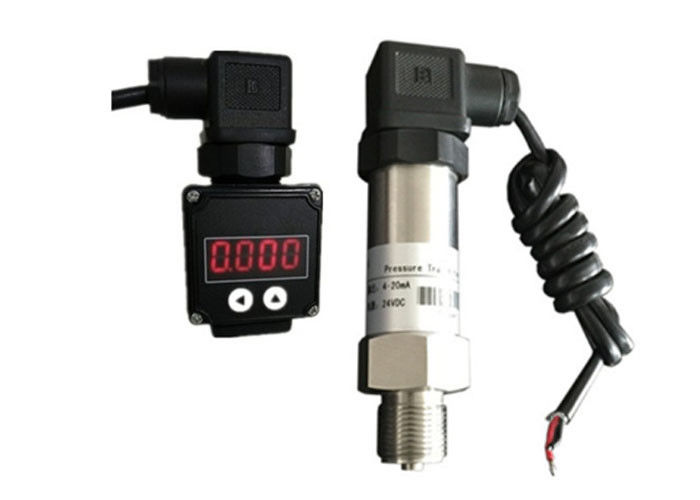

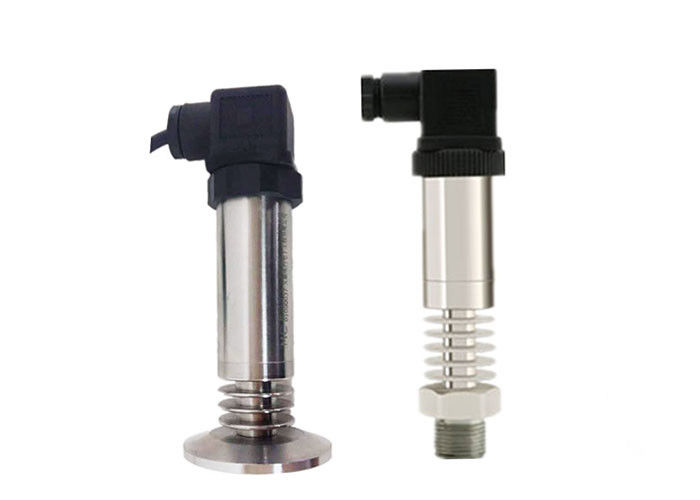

0.5-4.5V, 4-20mA Stainless Steel Smart Pressure Transmitter -100kpa~60MPa Pressure Measurement
Production Features
• High cost performance, specially designed and produced for OEM customers
• Excellent corrosion, overloading, anti-vibration and wear resistance performance.
• A wide range of operating temperature and long-term stability
• Normalized design and production ensure the advancement, practicality and quality stability of our products
Applications
♦Engineering machinery
♦Pump and compressor
♦Energy and water
♦Water Treatment system
♦Agricultural mechanical equipment
♦Hydraulic and pneumatic system
♦Air conditioning unit and refrigeration equipment
Specifications
|
Applicable media
|
Liquid, Gas, Steam
|
|
Pressure measurment
|
Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
|
|
Pressure range
|
0-0.2~-100kPa, 0-0.2~1000kpa, 60mPa
|
|
Output signals
|
4~20mA, 1-5V for optional
|
|
Accuracy
|
0.2, 0.5
|
|
Stability
|
±0.25% FS/year
|
|
Zero drift
|
50% of full range span.
|
|
Max overload
|
200% of sensor range
|
|
Display
|
LED (Optional)
|
|
Housing material
|
304 stainless steel
|
|
Mechanical connection
|
M20×1.5; 1/2-18NPT, 1/4NPT, Customize
|
|
|
Non-explosion: 10.5~45V DC
|
|
EEX ia:10.5～30 V DC
|
|
|
Ambient temperature
|
－40～85℃
|
|
Process temperature
|
－40～85℃
|
Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
