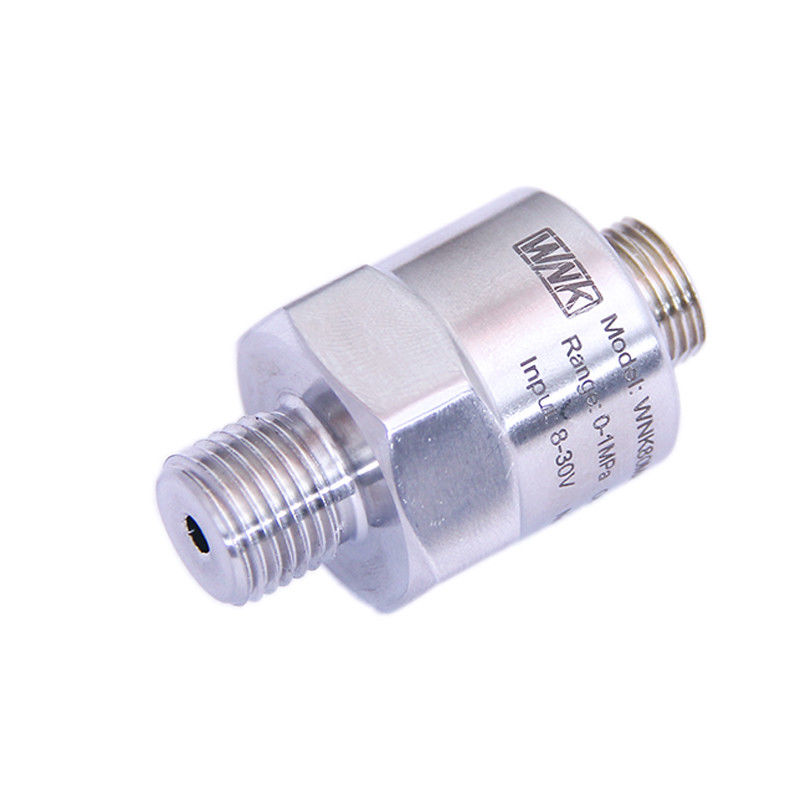

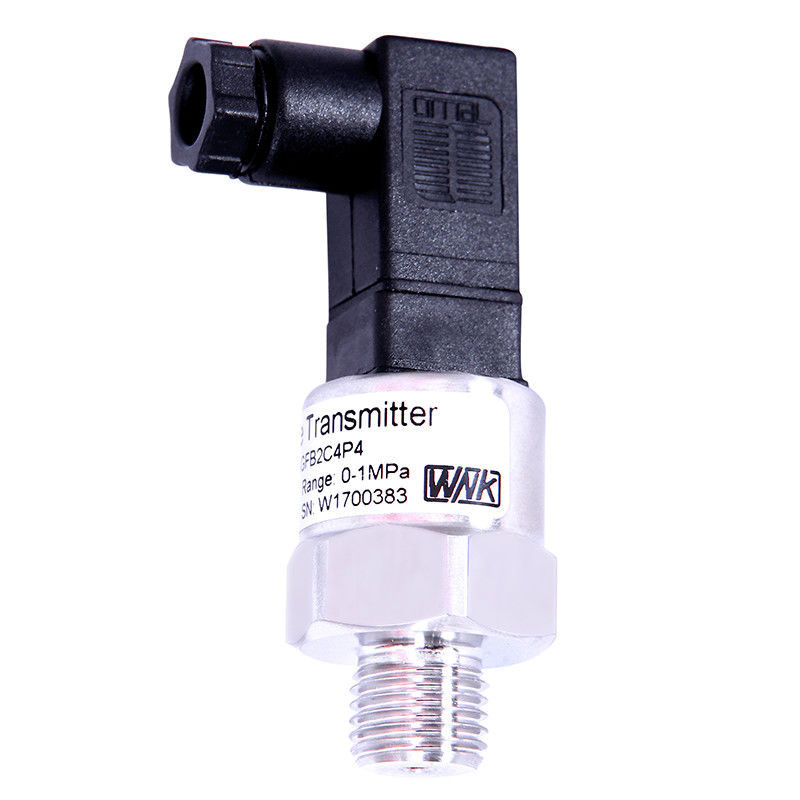

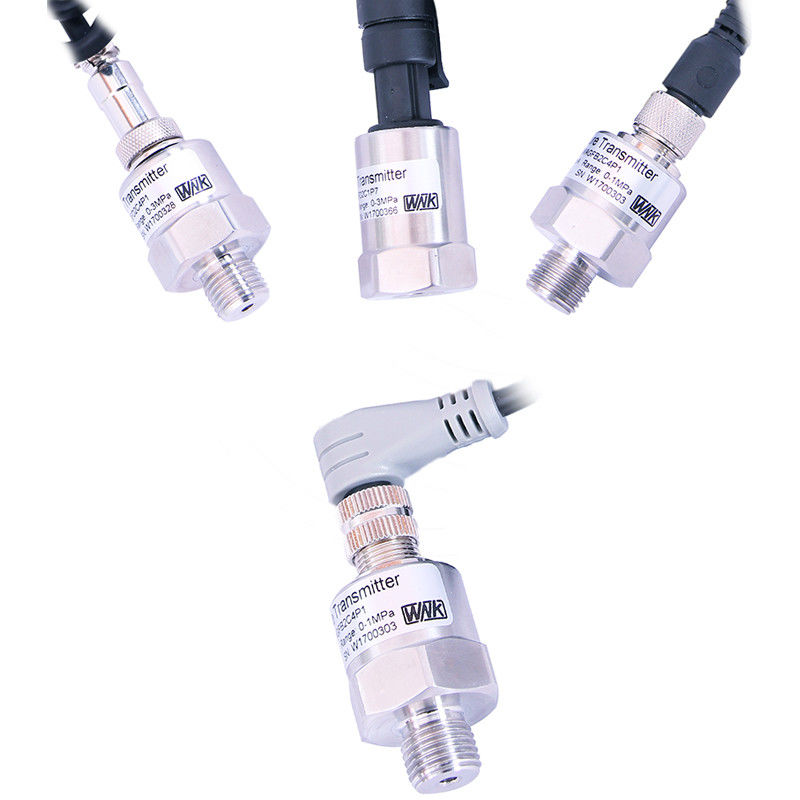

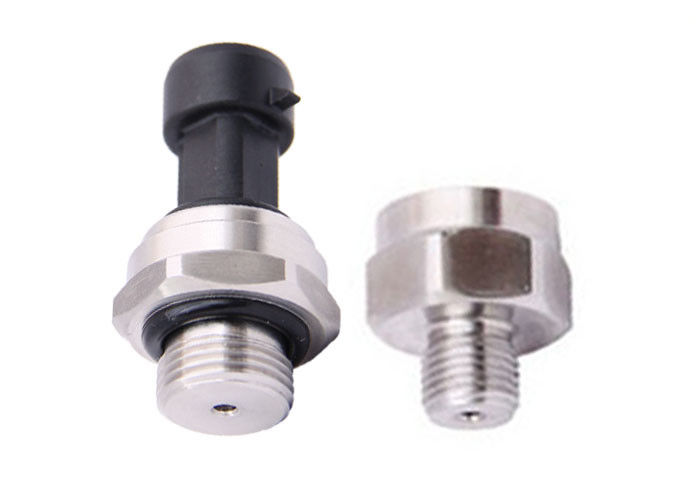

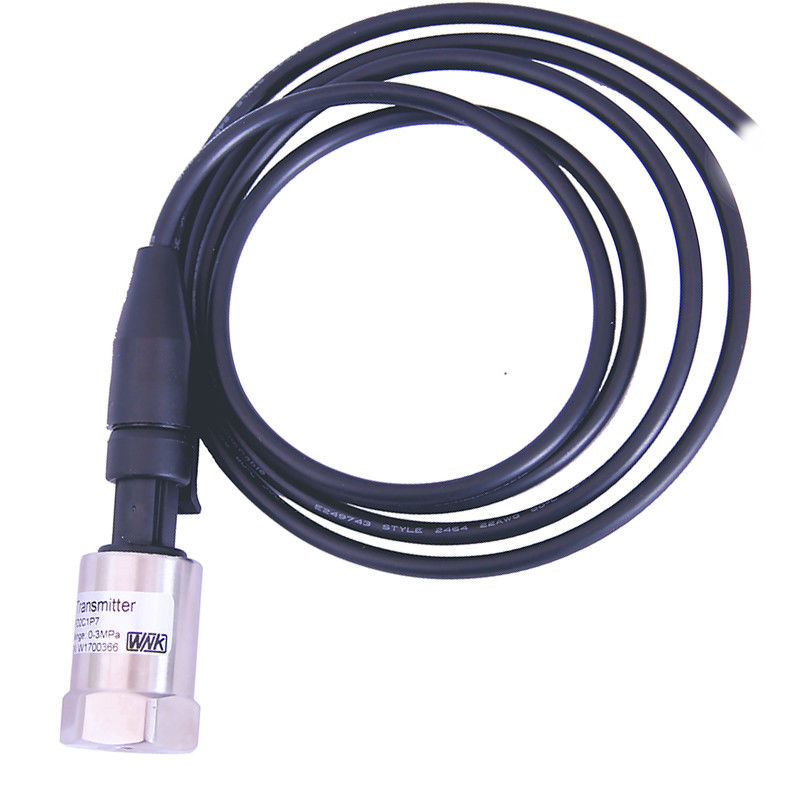

Name: Water Pump Compact Pressure Sensor 0.5-4.5V Output Anti-Freezing 0.5%FS Stability
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Price: 21.00 USD
Availability: InStock

المنزل > المنتجات > Compact Pressure Sensor >

Water Pump Compact Pressure Sensor 0.5-4.5V Output Anti-Freezing 0.5%FS Stability

oem pressure sensor

precision pressure sensor

Compact Pressure Sensor Anti freezing

مكان المنشأ:

خفى، الصين

اسم العلامة التجارية:

WNK

إصدار الشهادات:

CE, SGS, ISO9001

رقم الموديل:

WNK80MA

اتصل بنا

اطلب اقتباس

Water Pump Compact Pressure Sensor 0.5-4.5V Output Anti-Freezing 0.5%FS Stability

Product Details

ضغط الإدخال:

0-1.6 ميجا باسكال

استقرار:

+/-0.5% FS، +/-1.0% FS (للخيار)

عنصر المستشعر:

جهاز استشعار بالسعة السيراميك

درجة الحماية:

IP67، IP65

يكتب:

مقياس ، مطلق

مدخلات الجهد:

5 فولت تيار مستمر، 12 فولت تيار مستمر، 24 فولت تيار مستمر، 9-30 فولت تيار مستمر

درجة حرارة العمل:

-20 درجة مئوية - 70 درجة مئوية

إبراز:

oem pressure sensor

precision pressure sensor

Compact Pressure Sensor Anti freezing

Payment & Shipping Terms

الحد الأدنى لكمية

5 قطعة

الأسعار

negotiable

تفاصيل التغليف

التعبئة الصالحة للبحر أو التعبئة الصالحة للهواء

وقت التسليم

7-10 أيام عمل

شروط الدفع

/ تي تي، ويسترن يونيون، موني جرام

القدرة على العرض

5000 جهاز كمبيوتر شخصى شهريا

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

احصل على أفضل سعر

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

احصل على أفضل سعر

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

احصل على أفضل سعر

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

احصل على أفضل سعر

اتصل بنا

اتصل بنا الآن

Product Description

Water Pump Compact Pressure Sensor 0.5-4.5V Output Anti-freezing 0.5%FS Stability

Description

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Technical Data

Applicable media	Liquid, Gas
Pressure range	0-1.6Mpa , 0-20Mpa, Customized
Pressure measurment	Gauge Pressure
Output	0.5-4.5V/4-20mA
Accuracy(linearity,Hysteresis and Repeatability)	0.5%F.S.(Typical), 1.0%FS ( for option)
Power supply	24VDC/12VDC/5VDC
Compensation temperature	-20~70ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
power(electrical) connect	Parkard, M12, DIN43650, Cable outlet, Other
Mechanical connection	G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material	304 stainless steel

Application:

For oil,fuel,diesel,gas,water or air pressure.Can be used in oil tank,gas tank,diesel tank etc.
