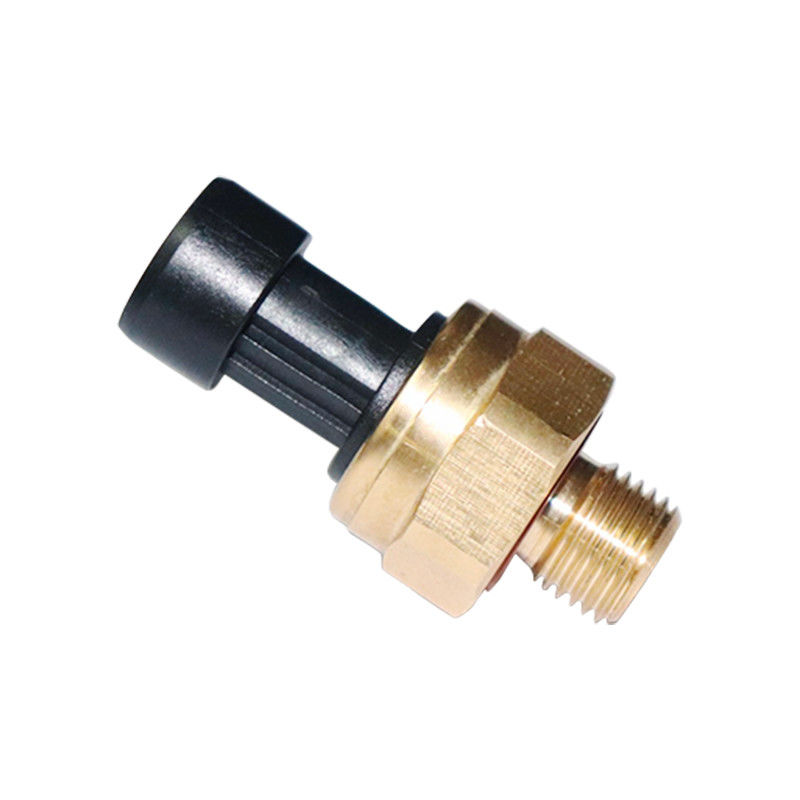

Brass Housing Material Air Pressure Sensor Sealing Pressure 1%FS Accuracy

Brass Housing Material Air Pressure Sensor Sealing Pressure 1%FS Accuracy

air pressure transmitter

mini pressure sensor

مكان المنشأ:

الصين

اسم العلامة التجارية:

WNK

إصدار الشهادات:

ISO, CE

رقم الموديل:

WNK83MA

اتصل بنا
اطلب اقتباس
Product Details
دقة:
1٪ ف
الإخراج:
0.5-4.5 فولت
نطاق الضغط:
0-1000 كيلو باسكال
مزود الطاقة:
4.75-5.25 فولت تيار مستمر
درجة حرارة العمل:
-20 ~ 70 درجة مئوية
وسائل الإعلام المقاسة:
السائل والغاز والبخار
مواد الإسكان:
النحاس
الاتصال الكهربائي:
باكارد
إبراز:

air pressure transmitter

,

mini pressure sensor

Payment & Shipping Terms
الحد الأدنى لكمية
1 قطعة
الأسعار
negotiable
تفاصيل التغليف
صندوق كرتوني قياسي للتصدير أو وفقًا لمتطلباتك
وقت التسليم
5-7 أيام عمل
شروط الدفع
خطاب الاعتماد، T/T، ويسترن يونيون، موني جرام
القدرة على العرض
5000 قطعة/قطعة في الشهر
RELATED PRODUCTS
اتصل بنا
اتصل بنا الآن
Product Description

De presion diferencial,manometros de columna,pump presostato controlador

Founded in 2004, Hefei WNK Smart Technology Co Ltd is a professional national high-tech enterprise specializing in the development, manufacturing, sales and service of various type of advanced and reliable pressure sensors and pressure transmitters. We are committed to providing our customers with pressure sensors, pressure transmitters and technical solutions in various type of applications
The company's main products include pressure sensors and transmitters, temperature transmitters and other measuring instruments. The company's products and services are widely applied in internet of things and smart cities such as: smart water, smart gas and smart fire.
With strict and scientific management system and management mechanism, WNK has passed the I S O 9 0 0 1: 2 0 1 5 quality management system certification of the classification society. WNK is committed to research and developing of new products and technical innovations. With continuous efforts aiming at advancement of cutting-edge technologies, WNK has been undertaking some innovative projects of the State Ministry of Science and Technology, and was recognized as a “small technological giant” cultivation enterprise by Hefei high-tech zone.
WNK is also the only enterprise in Anhui Province that is certificated with accuracy 0.005% measuring instrument production. The trademark of WNK has been recognized as a well-known trademark.


Parameter


Applicable media Liquid, gas, steam
Pressure range 0-1000Kpa
Pressure measurement Gauge pressure, sealing pressure
Output 0.5-4.5V
Power Supply 4.75-5.25VDC
Accuracy(lineraity, hysteresis, repeatability) 1%FS
Work temperature -20~70°C
Storage temperature -40~110°C
Temp drift(zero) ±0.15%FS(-20~70°C)
Temp drift(full range) ±0.15%FS(-20~85C)
Electrical connection Parkard
Mechanical connection 1/4 NPT
Housing material Brass





Mechanical Dimension

Brass Housing Material Air Pressure Sensor Sealing Pressure 1%FS Accuracy 0






Company Information



Brass Housing Material Air Pressure Sensor Sealing Pressure 1%FS Accuracy 1


Factory


Brass Housing Material Air Pressure Sensor Sealing Pressure 1%FS Accuracy 2




Exhibition


Brass Housing Material Air Pressure Sensor Sealing Pressure 1%FS Accuracy 3





Our Certificate
Brass Housing Material Air Pressure Sensor Sealing Pressure 1%FS Accuracy 4





Packing
Brass Housing Material Air Pressure Sensor Sealing Pressure 1%FS Accuracy 5

FAQ


Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
