مكان المنشأ:
الصين
اسم العلامة التجارية:
WNK
إصدار الشهادات:
CE
رقم الموديل:
WNK80MA
فيديو

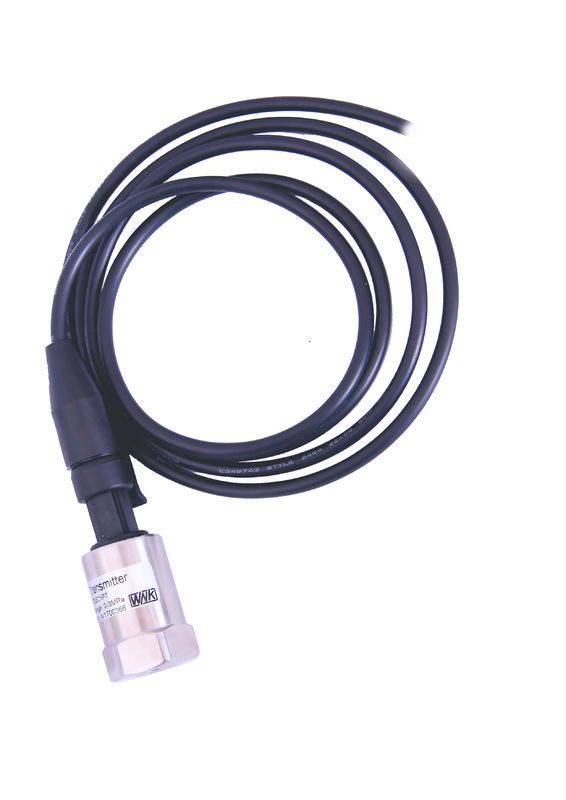

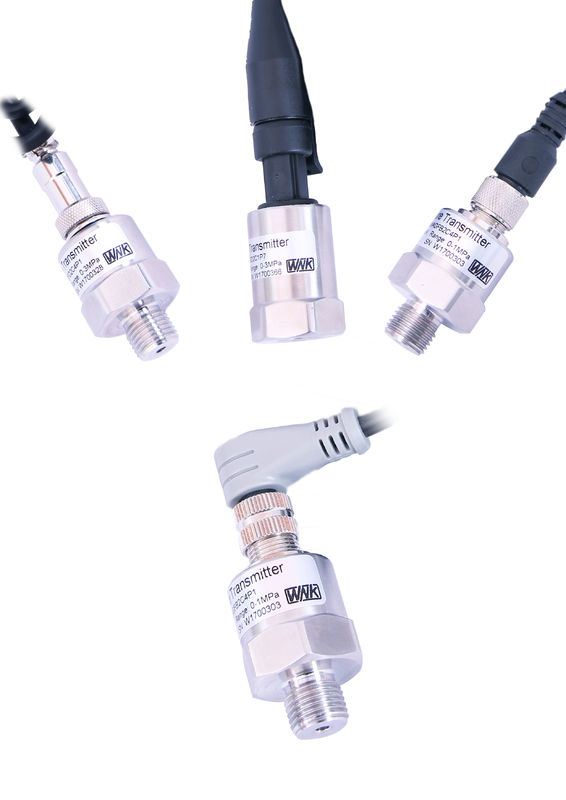

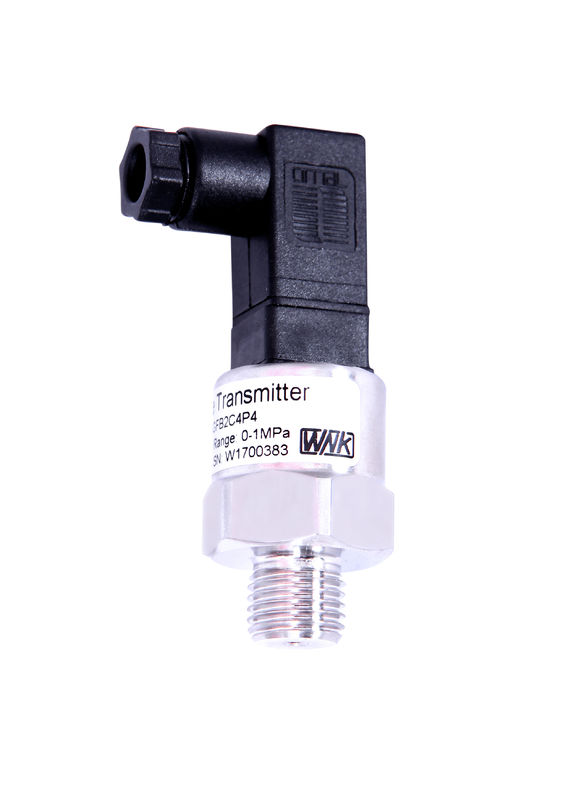

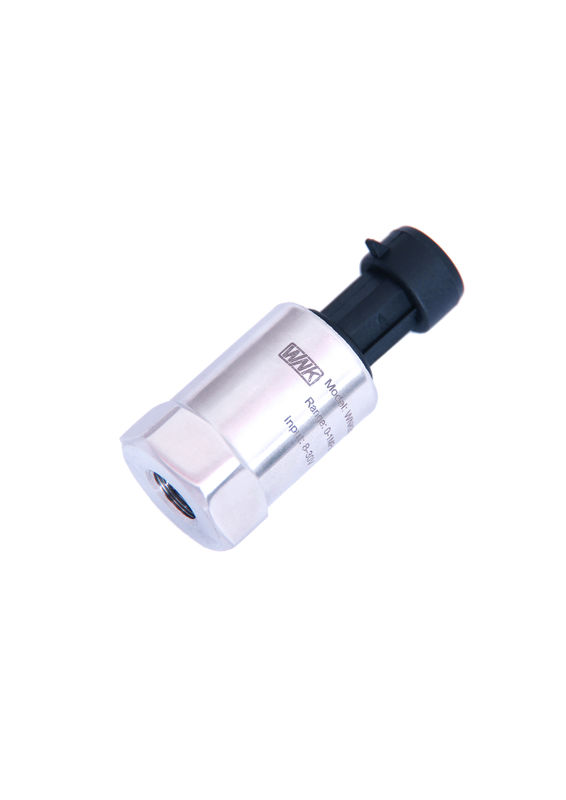

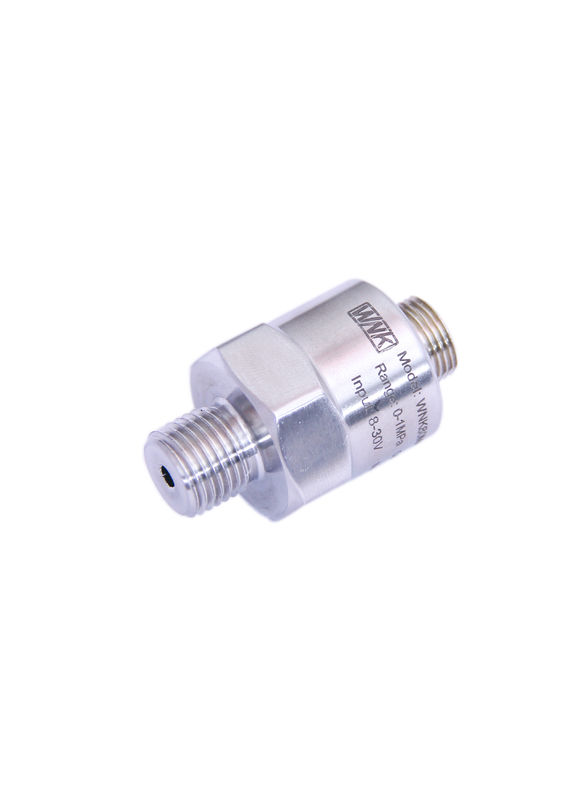

WNK80mA has features of anti-corrosion,anti-wear,shock resistance and vibration resistance.
It is a series of high performance compact pressure sensor by using AIC signal conditioning chip and dry ceramic capacitive pressure sensor
Support analog and digital output methods,medium temp -40 to 125℃.
| >>> Applications |
| - Automobile, Compressor and Refrigeration Industry |
| - Engineering machinery |
| - Pressure control and monitor |
| - Water treatment system |
| - Hydraulic and Pneumatics |
| - HVAC and BAS Control |
| - Pump, fitness equipment, household appliances |
| - Factory Automation |
| - Fluid Control and Instrumentation Systems |
| Input | |
| Pressure Type | Gauge Pressure , Absolute Pressure, Sealing Pressure |
| Pressure Range | -100Kpa - 60Mpa |
| Accuracy | 0.2%, 0.5% |
| Power Supply | 5VDC, 12-32VDC |
| Measuring Media | Gas, Steam, Liquid, Oil |
| Output | |
| Analog | 4-20mA, 0.5-4.5V / 1-5V / 0-5V |
| Digital | I2C, SPI |
| Operation Condition and Temperature | |
| Compensation Temperature | -20...75℃ |
| Storage Temperature | -45 ... 85℃ |
| Ambient Temperature | -45 ... 85℃ |
| Medium Temperature | -40 ... 125℃ |
| Material and Protection | |
| Ingress Protection | IP65, IP67 |
| Housing Material | 304SS, 316L |
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
