مكان المنشأ:
خفى، الصين
اسم العلامة التجارية:
WNK
إصدار الشهادات:
CE, SGS, ISO9001 2015
رقم الموديل:
WNK21

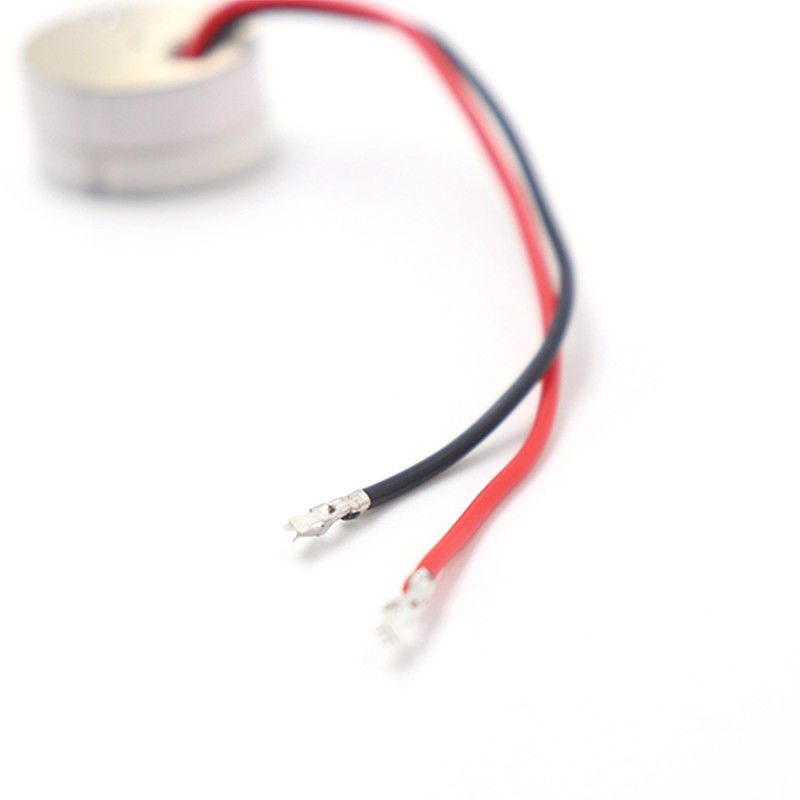

Digital pressure sensor supports I2C and SPI with high stability and high accuracy
Hefei WNK Smart Technology Co.,Ltd is a professional national high-tech enterprise specializing in the development, manufacturing, sales and service of various type of advanced and reliable pressure sensors and pressure transmitters.
With the concept of smart water management system, smart fire control, sponge city, smart city, and internet of things, WNK quickly seizes opportunities to develop low cost, low power, small size, with temperature measurement function ceramic capacitive pressure sensor.Our sensor outputs including 4~20mA, SPI, I²C, 0.2~2.9V, 1~5V, 0~5V, 0.5~4.5V, 0~10v and etc.
Applications: Gas Water Steam Oil Measurement, Monitoring, Process Control
Features :
1. Temperature range: -40 to 70ºC;
2. Wide operation temperature range -40~125ºC;
3. High performance ceramic capacitive pressure sensor;
4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available;
5. Small dimensions, dimension customizble;
6. Optional packard, M12, Small Hirschman connectors;
7. OEM, ODM, customization service available;
Technical Data
| IOT Pressure Sensor For Water Gas Oil Monitoring | ||||
| Pressure range | -100kpa~70MPa | |||
| Pressure type | Gauge, Absolute, Seal, Vacuum | |||
| Overpressure | 300%F.S. (≤70kPa) 200%F.S.(≤25MPa) | |||
| Output signals | 0.2-2.9V, SPI, I2C, 0.5-4.5V, 1-5V, 0-5V, 0~10V, 4~20mA | |||
| Accuracy | ±0.5%FS, ±1%FS | |||
| Compensation Temp. | -20~70℃ | |||
| Operation Temp. | -40~125℃ | |||
| Storage Temp. | -40~125℃ | |||
| Zero Temp. Drift | ±1.5%FS Max (-20~85℃) | |||
| Full Scale Temp. Drift | ±1.5%FS Max (-20~85℃) | |||
| Pressure Connection | G1/4, 7/16-SAE, NPT, and other outputs | |||
| Ingress Protection | IP67 | |||
| Housing | SS316, SS304 | |||
Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs supported I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other
6. Our products have been exported to most of the EU countries, North America, South East Aisia and other countries and regions.
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
