Name: High Accuracy 26GHz Tank Radar Level Transmitter Meter Gauge For Industrial Field
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: ونكغدرد
Price: 800 USD
Availability: InStock

المنزل > المنتجات > Submersible Level Sensor >

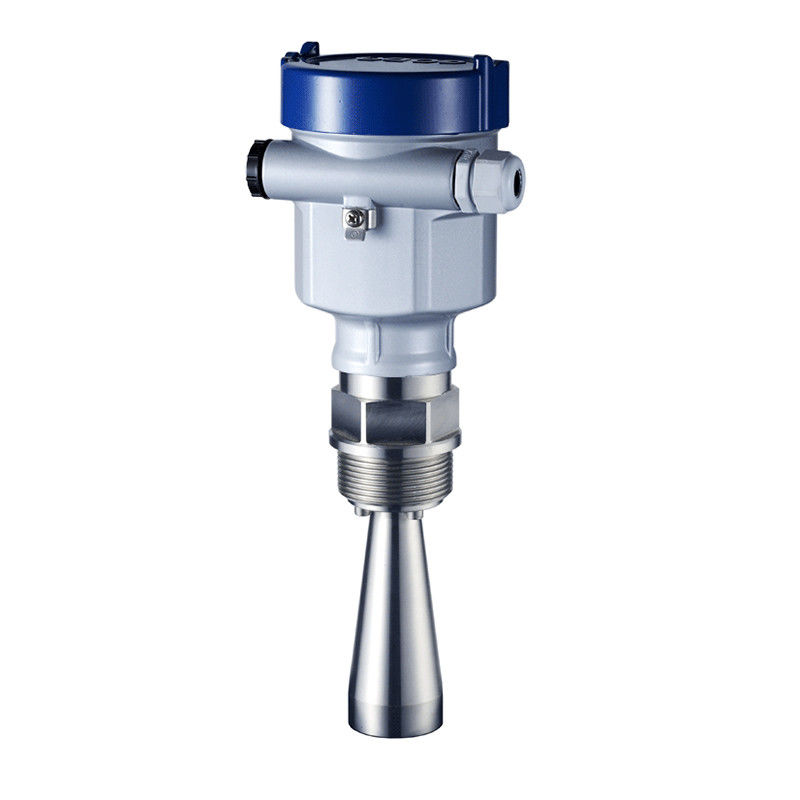

High Accuracy 26GHz Tank Radar Level Transmitter Meter Gauge For Industrial Field

stainless steel level sensor

liquid level sensor

26GHz Submersible Level Sensor

مكان المنشأ:

الصين

اسم العلامة التجارية:

WNK

رقم الموديل:

ونكغدرد

اتصل بنا

اطلب اقتباس

High Accuracy 26GHz Tank Radar Level Transmitter Meter Gauge For Industrial Field

Product Details

طلب:

صهريج

دقة:

± 15 ملم

مقياس المدى:

70 م

عملية الضغط:

-0.1~4MPa

تكرار:

26 جيجا هرتز

درجة حرارة العملية:

-40 ~ 400 درجة مئوية

الإخراج:

4-20mA/HART

مزود الطاقة:

2 سلك (تيار مستمر 24 فولت)، 4 أسلاك (DC24V/AC220V)

شاشات الكريستال السائل:

خياري

إبراز:

stainless steel level sensor

liquid level sensor

26GHz Submersible Level Sensor

Payment & Shipping Terms

الحد الأدنى لكمية

1 مجموعة

الأسعار

USD800 per set

تفاصيل التغليف

كرتون

وقت التسليم

5-8 أيام عمل

شروط الدفع

T/T ، Western Union ، PayPal ، بطاقة الائتمان

القدرة على العرض

200 مجموعة / مجموعات شهر مقياس إرسال مستوى الرادار عالي الدقة 26 جيجا هرتز

IP68 Stainless steel Dirty Water Submersible Level Sensor

احصل على أفضل سعر

فيديو

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

احصل على أفضل سعر

فيديو

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485

احصل على أفضل سعر

فيديو

20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile

احصل على أفضل سعر

اتصل بنا

اتصل بنا الآن

Product Description

High Accuracy 26GHz Tank Radar Level Transmitter Meter Gauge For Industrial Field

Principle:

The antenna of radar level instrument transmits a very narrow microwave pulse which propagates at the speed of light in space.

When meeting the dielectric surface to be measured, part of its energy is reflected and received by the same antenna. The time interval of transmitting and receiving pulses is proportional to the distance between antenna and dielectric surface to be measured, and therefore the distance between antenna and dielectric surface to be measured can be calculated.

Features:

-Small beam angle (min 5º), centralized energy and stronger antijamming capability which have significantly improved the measurment accuracy and reliability;

-Small antenna size which facilitates installation and addition of protective devices for antenna such as a dust-proof cover;

-Smaller unmeasurable zone which can help to obtain good results for measuing small tanks;

-Shorter wavelength which is more suitable for level measurement of small particulate matters.

Company Introduction:

FAQ:

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient

pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
