مكان المنشأ:
الصين
اسم العلامة التجارية:
WNK
إصدار الشهادات:
CE
رقم الموديل:
WNK808B
فيديو

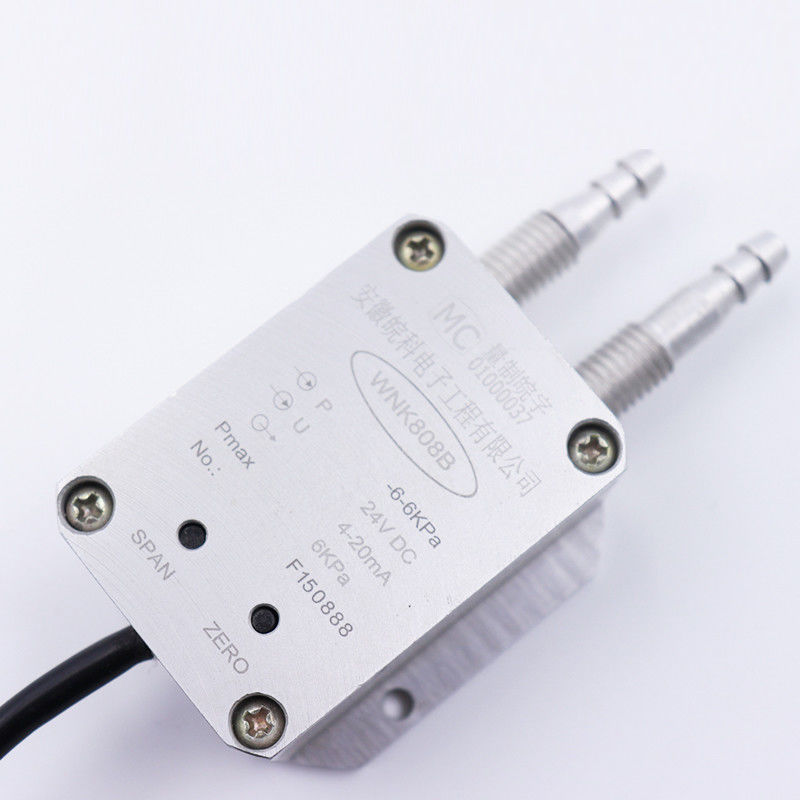

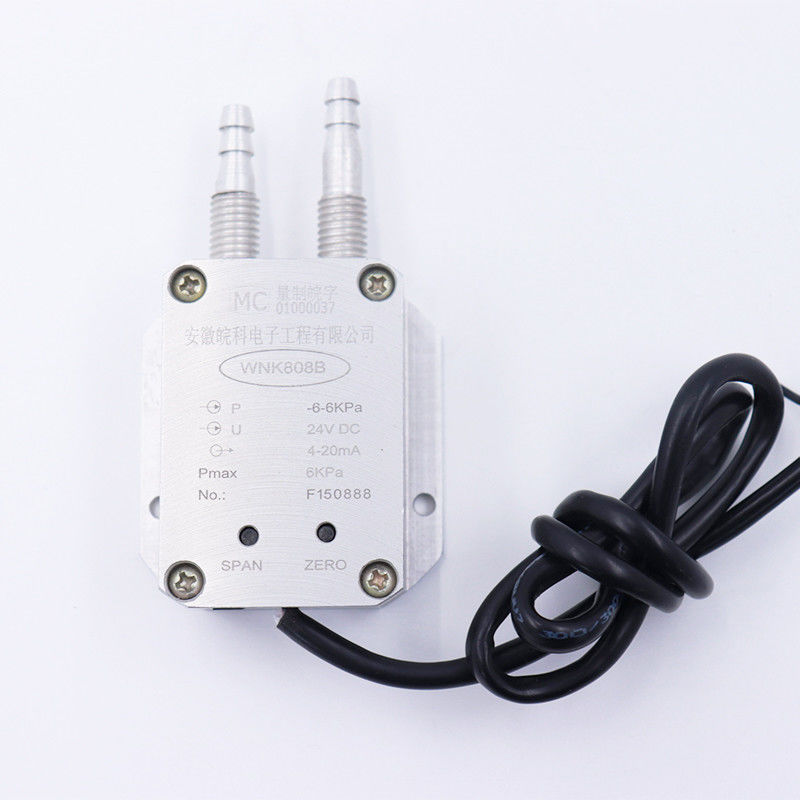

4-20mA Wind Differential Pressure Sensors Output Pressure Transmitter
Product Description
WNK808B Differential Pressure Transmitter Adopt High Accuracy And High Stable Chips,And are assembled with Aluminium Alloy or Stainless housing and Stress Isolation Technology .Though precision temp compensation and amplificaton ,
| Application Media | Non-conductive or weak corrosive gas |
| Pressure Range | -10Pa-100Pa -100Kpa-+100Kpa |
| Accuracy | ±0.2%FS, ±0.5%FS, ±1%FS |
| Stability | 0.8%FS/Year |
| Max static pressure | 70Kpa |
| Max Overload | 250%FS |
| Output | 4-20mA |
| Housing Material | Aluminium 14 |
| Pressure Connector | M8*1 female or Φ8 Pagoda type head |
| Power Supply | Non-explosion: 10.5~45VDC |
| Exia:10.5~30VDC | |
| Ambient Temperature | -40~85℃ |
| Compensation temperature | -10~70℃ |
| Working temperature | -10~70℃ |
Company Information
FAQ
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
