مكان المنشأ:
الصين
اسم العلامة التجارية:
WNK
إصدار الشهادات:
CE
رقم الموديل:
WNK83MA

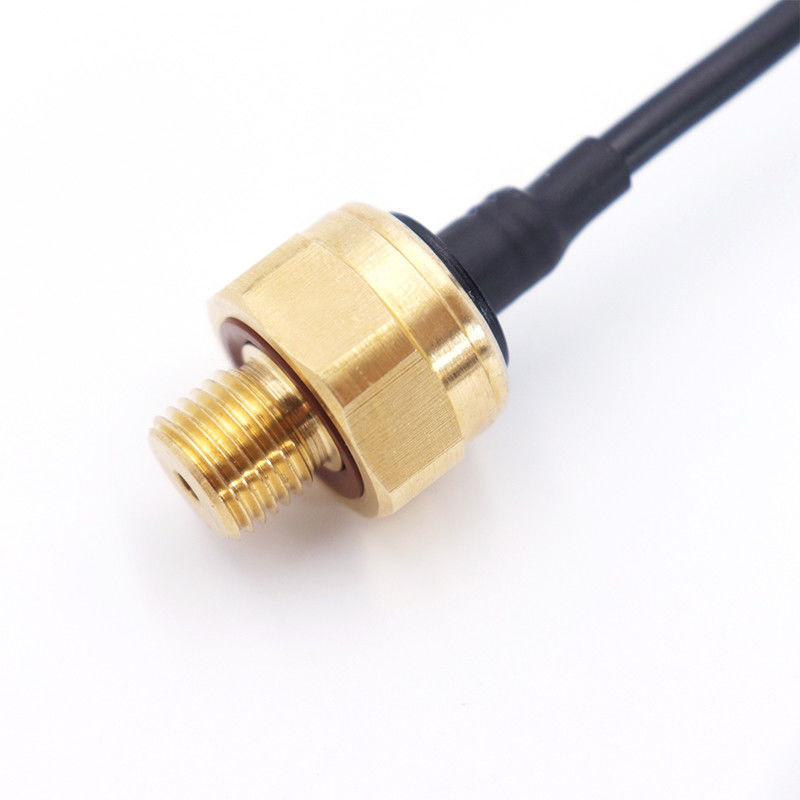

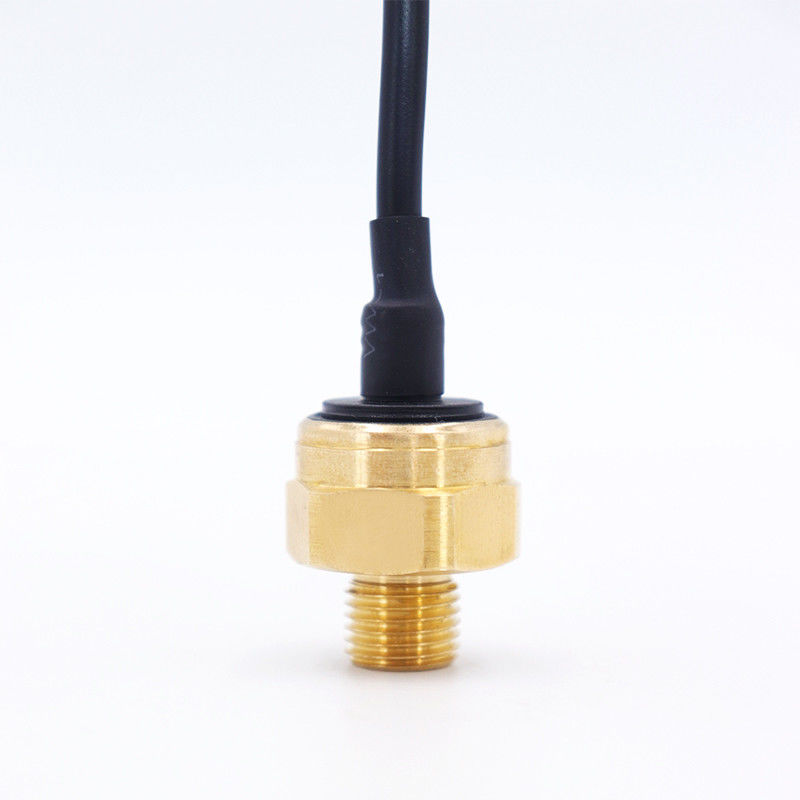

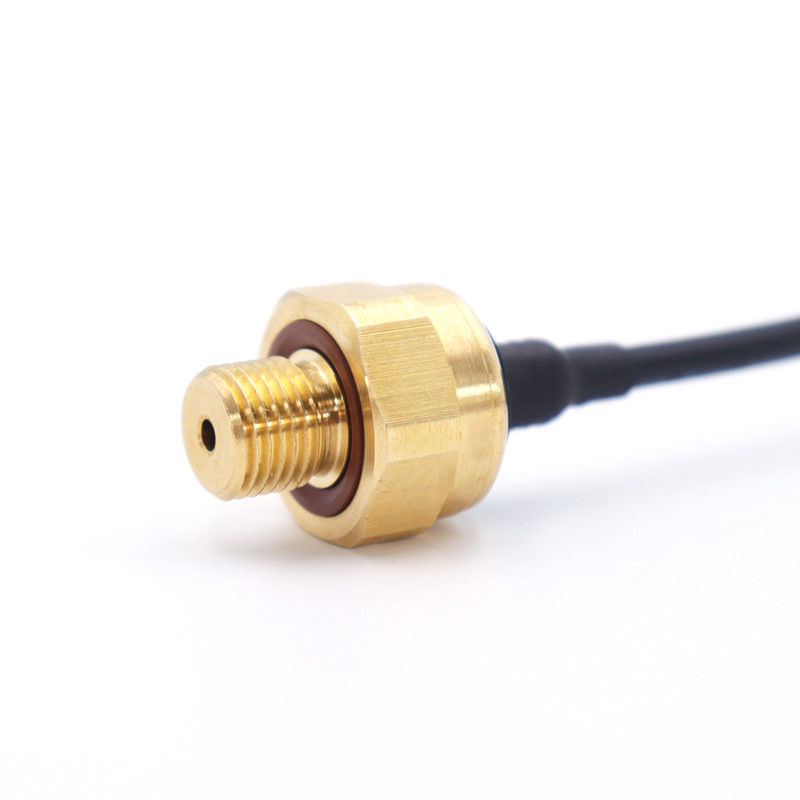

G1/4 Cable Outlet 0.5 - 4.5V Output Brass Pressure Sensor For Water Liquid Gas
Mini brass pressure sensor suitable for air oil water,ready to ship now.
WNK83MA is our standard compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor.
| Applicable media | Liquid, gas and steam |
| Pressure range | 0-2MPa |
| Cell | Ceramic capacitive pressure sensor |
| Pressure measurment | Gauge Pressure, Sealing pressure |
| Output | 0.5-4.5V |
| Power supply | 4.75-5.25 VDC |
| Accuracy(linearity,Hysteresis and Repeatability) | 1%F.S. |
| Working temperature | -20~70ºC |
| Ambient temperature | -40~110ºC |
| Temperature drift(zero) | ±0.15% F.S. (-20~70ºC) |
| Temperature drift(full range) | ±0.15% F.S. (-20~70ºC) |
| Electrical connection | Cable Outlet |
| Mechanical connection | G 1/4 |
| Housing material | Brass |
Company
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
