مكان المنشأ:
الصين (البر الرئيسي)
اسم العلامة التجارية:
WNK
رقم الموديل:
WNK83MA

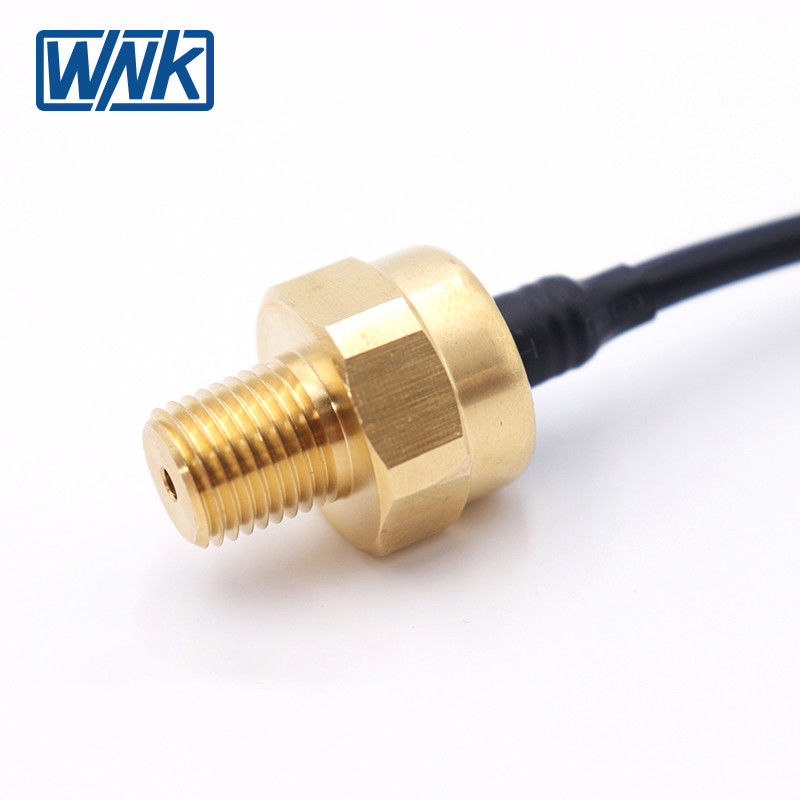

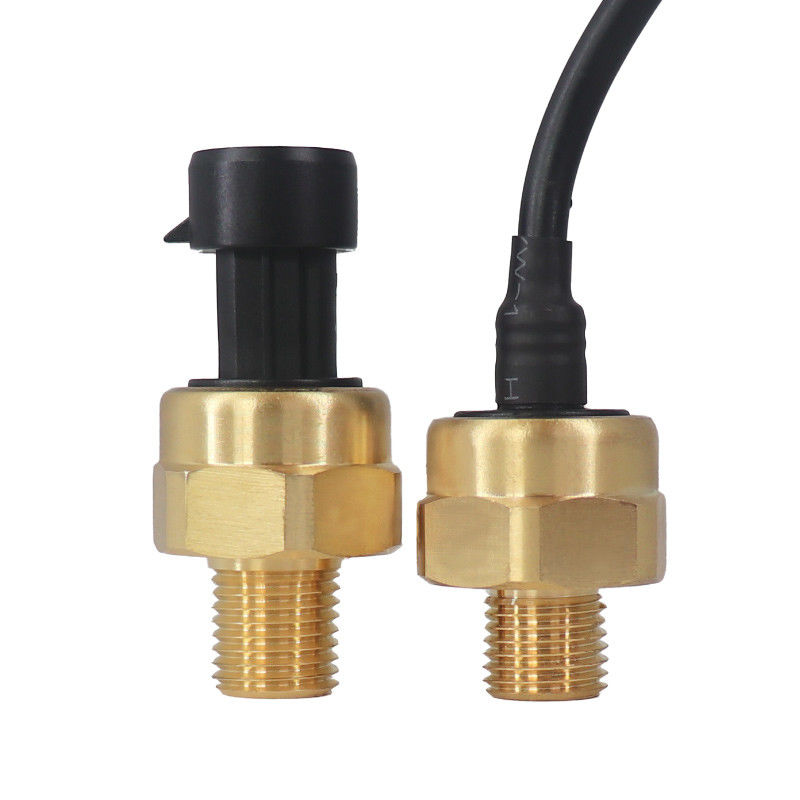

Mini brass pressure sensor,range 0-20bar,temp range -20 to 70ºC,output 0.5-4.5V,suitable for gauge pressure ,sealing pressure.
This product is in stock, please place an order directly.
If you have any other questions, please feel free to contact us.
| Applicable media | Liquid, gas, steam |
| Pressure range | 0-10bar, 0-20bar |
| Cell | Ceramic capacitive pressure sensor |
| Pressure measurement | Gauge pressure, sealing pressure, absolute pressure |
| Output | 0.5-4.5VDC |
| Power supply | 4.75-5.25VDC |
| Accuracy(linearity, hysteresis and repeatability) | 1%F.S. |
| Work temperature | -20~70ºC |
| Ambient temp | -40~110ºC |
| Temperature drift(zero) | ±0.15% F.S. (-20~70ºC) |
| Temperature drift(full range) | ±0.15% F.S. (-20~70ºC) |
| Electrical connection | Cable outlet/Packard |
| Mechanical connection | 1/4NPT/G1/4 |
| Housing material | Brass |
Mechanical Dimension:
