Name: 4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK808N1
Price: 45.00 USD
Availability: InStock

المنزل > المنتجات > Smart Pressure Transmitter >

4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam

Micro Differential smart pressure transducer

20mA gas pressure transmitter

Micro Differential gas pressure transmitter

مكان المنشأ:

انهوى، الصين

اسم العلامة التجارية:

WNK

رقم الموديل:

WNK808N1

اتصل بنا

اطلب اقتباس

Product Details

وسائل الإعلام المقاسة:

الهواء والغاز

نطاق الضغط:

-0.25-0.25kPa/-0.5-0.5kPa/-1-1kPa/-2-2kPa/-7-7kPa/-100-100kPa

إشارات الإخراج:

2 أسلاك 4-20mA/0-10V/RS485/2xPNP

دقة:

± 0.1٪ FS

مزود الطاقة:

12-32 فولت تيار مستمر

توصيلات كهربائية:

المحطة أو M12

الحمل الخارجي:

≥500Ω

اسم:

جهاز إرسال الضغط التفاضلي الصغير للمياه والهواء 4-20 مللي أمبير

إبراز:

Micro Differential smart pressure transducer

20mA gas pressure transmitter

Micro Differential gas pressure transmitter

Payment & Shipping Terms

الحد الأدنى لكمية

1 مجموعة

الأسعار

negotiable

تفاصيل التغليف

كل مجموعة في عبوة كرتونية فردية مع الحماية

وقت التسليم

للتفاوض

شروط الدفع

/ تي تي، ويسترن يونيون، موني جرام

القدرة على العرض

-45 إلى 85 درجة مئوية، -40 إلى 80 درجة مئوية لرأس LCD

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

احصل على أفضل سعر

فيديو

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

احصل على أفضل سعر

فيديو

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

احصل على أفضل سعر

فيديو

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

احصل على أفضل سعر

اتصل بنا

اتصل بنا الآن

Product Description

Micro Differential Pressure Transmitter

Product Description

Intelligent Macro Differential Pressure Transmitter
Applicable media	Gas, Steam
Pressure Measurement	Gauge pressure, Differential pressure
Pressure range	-0.25-0.25kPa/-0.5-0.5kPa/-1-1kPa/-2-2kPa/-7-7kPa/-100-100kPa
Accuracy	±0.1%FS
Stability	0.8%F.S./Year
Max overload	250% of sensor range
Output signals	2-Wire 4-20mA/0-10V/RS485/2xPNP
Electrical Connections	Terminal or M12
Power Supply	12-32V DC
Compensation Temperature	0-60℃

Outstanding advantages and main selling points of the productHigh precision, slight differential pressure: measuring range is within ±1KPa, accuracy grade is ±0.1% FS.Minimum range: ±50Pa, accuracy grade ±0.5% FS.Real-time display, no lag: response time ≤100ms, real-time display of measurement data, no damping delay.High and low end interchange: Through key operation, the test high and low voltage ports can be interchanged.

Application

It is widely used in various industrial automatic control occasions, involving many industries such as fire protection, environmental protection, medical treatment, aviation, and industrial control. Such as negative pressure ward, central air-conditioning, elevator warehouse and other slight differential pressure measurement.

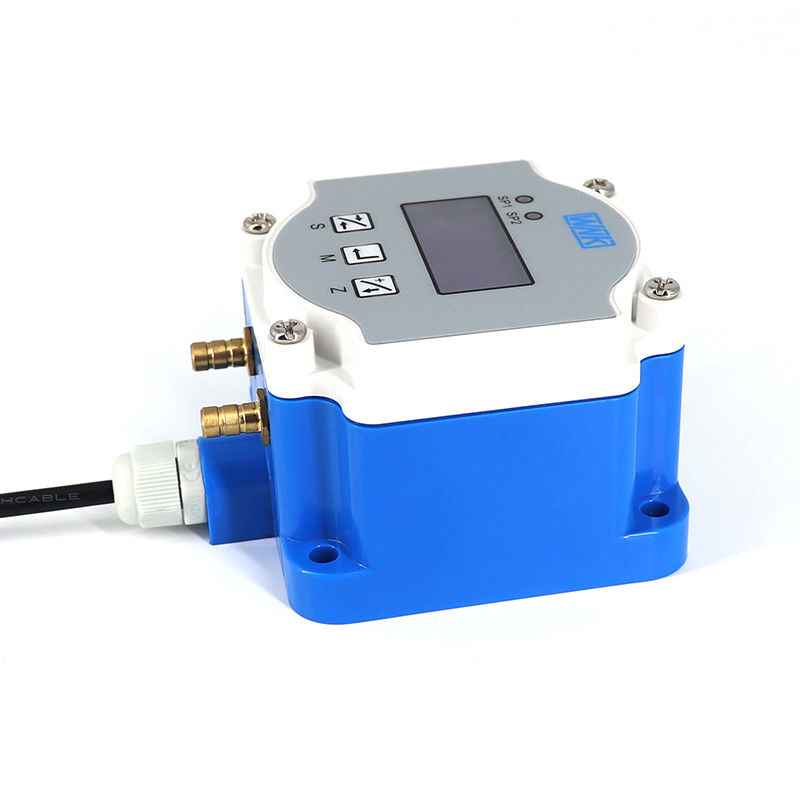

4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam 0

Product Show

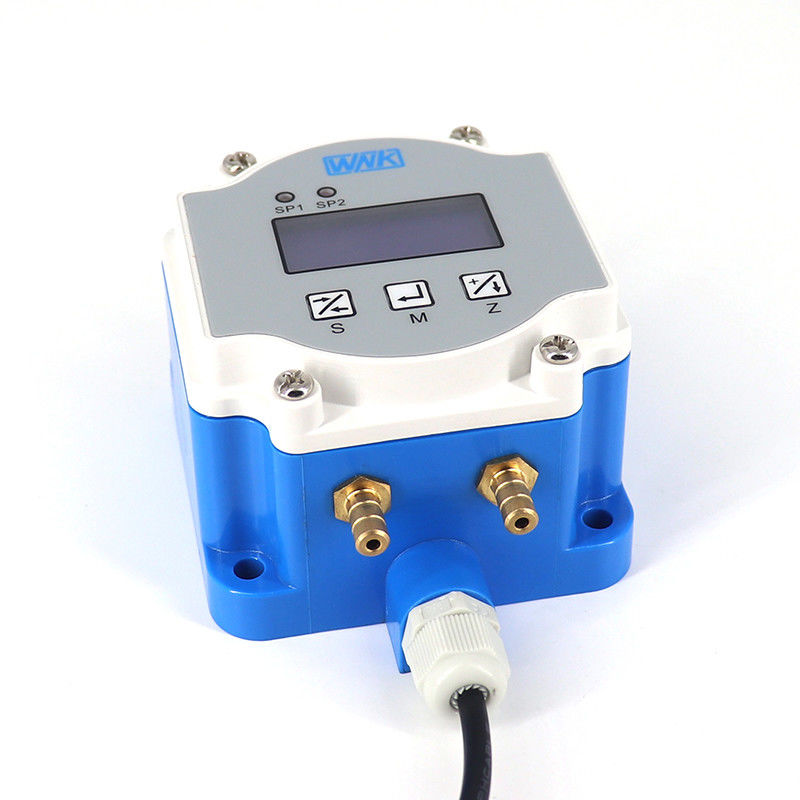

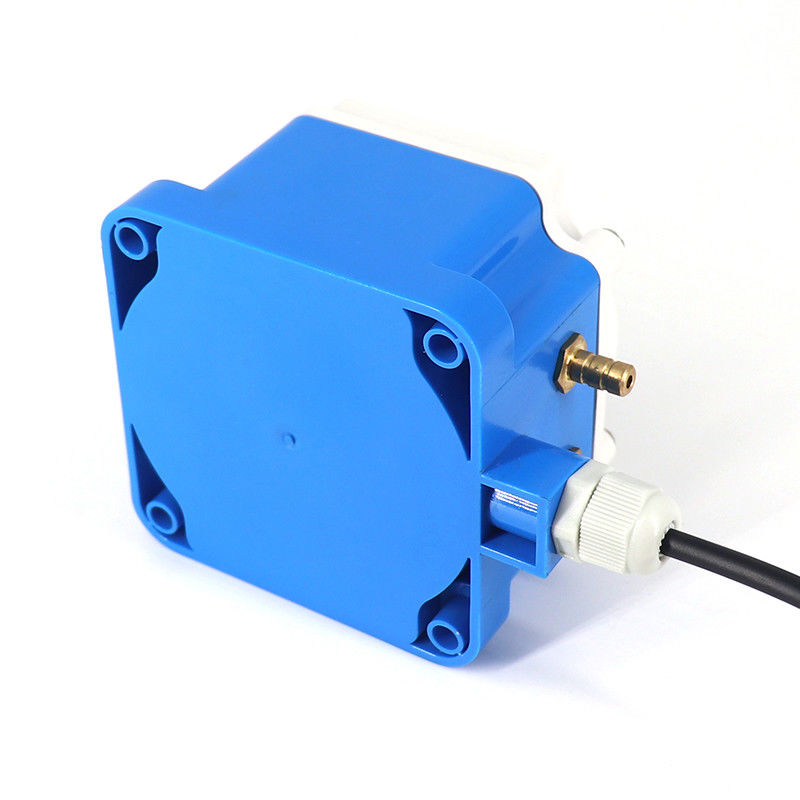

4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam 1
