Name: Food Grade Sanitary Flush Industrial Pressure Transmitter 4-20mA Output
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK805
Price: 403.00 USD
Availability: InStock

المنزل > المنتجات > Sanitary Pressure Sensor >

Food Grade Sanitary Flush Industrial Pressure Transmitter 4-20mA Output

Hygienic Industrial Pressure Transmitter

Food Grade Sanitary Pressure Sensor

4-20mA Industrial Pressure Transmitter

مكان المنشأ:

خفى، CN

اسم العلامة التجارية:

WNK

إصدار الشهادات:

CE, SGS, ISO9001, NEPSI

رقم الموديل:

WNK805

اتصل بنا

اطلب اقتباس

Product Details

الوسيلة القابلة للتطبيق:

الغاز والماء والسائل

يتراوح:

0-0.2 ~ -100 كيلو باسكال ؛ 0-0.2 ~ 1000 كيلو باسكال 60000 كيلو باسكال

الدقة الخطية:

0.5٪ FS 0.25٪ FS

يكتب:

مقياس، مطلق، سلبي

درجة حرارة العمل:

-40 ～ 85 درجة مئوية

الاتصال الكهربائي:

موصل هيرشمان

دليل:

IP67

قوة:

24 فولت تيار مستمر، 12-32 فولت

إبراز:

Hygienic Industrial Pressure Transmitter

Food Grade Sanitary Pressure Sensor

4-20mA Industrial Pressure Transmitter

Payment & Shipping Terms

الحد الأدنى لكمية

1 قطعة

الأسعار

negotiable

تفاصيل التغليف

التعبئة الصالحة للبحر أو التعبئة الصالحة للهواء

وقت التسليم

5-8 أيام عمل

شروط الدفع

/ تي تي، ويسترن يونيون

القدرة على العرض

5000 قطعة شهريا

DIN43650 M12 Cable Hygienic Sanitary Pressure Transducer

احصل على أفضل سعر

فيديو

Medical Flat Membrane Sanitary Pressure Sensor , Flush Diaphragm Pressure Transmitter

احصل على أفضل سعر

فيديو

High Temperature Pressure Sensor 120 Deg 4~20mA With Flush Diaphragm

احصل على أفضل سعر

فيديو

Hirschman Tri-clamp Sanitary Pressure Transmitter 4~20mA for Food Medical

احصل على أفضل سعر

اتصل بنا

اتصل بنا الآن

Product Description

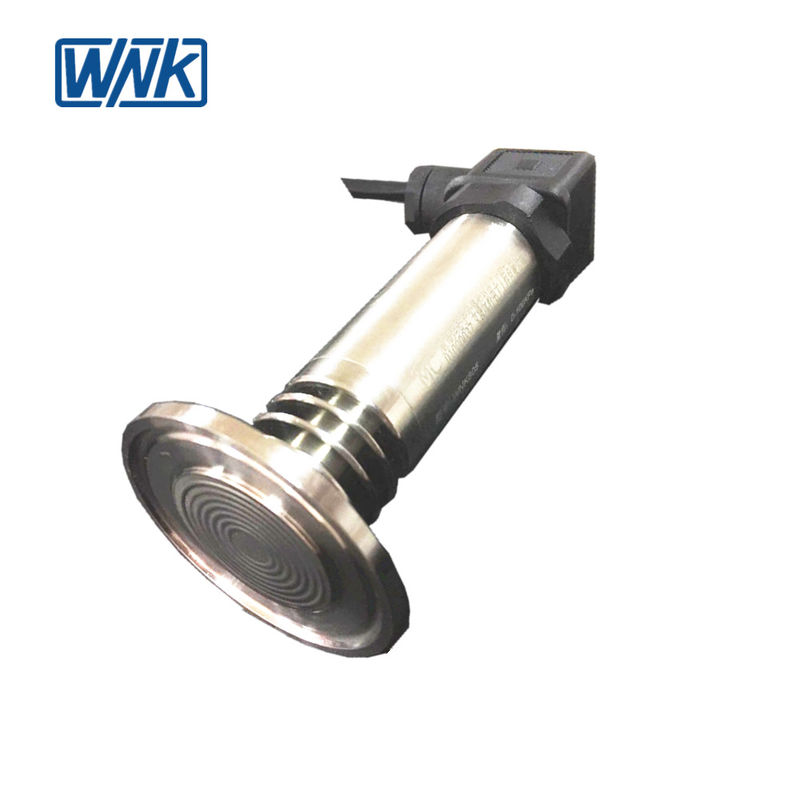

4-20mA Output Food Grade Sanitary Flush Diaphragm Hygienic Industrial Pressure Transmitter

Food Grade Sanitary Flush Diaphragm Pressure Transmitter

Specifications

The Series WNK805 Sanitary Pressure Transmitter is designed to meet the applications in food, dairy, beverage and pharmaceutical processing, liquid level control, and sanitary pipelines. The unit is fully sealed to withstand high pressure wash-down in Clean-in-Place and Sterilize-in-Place installations.

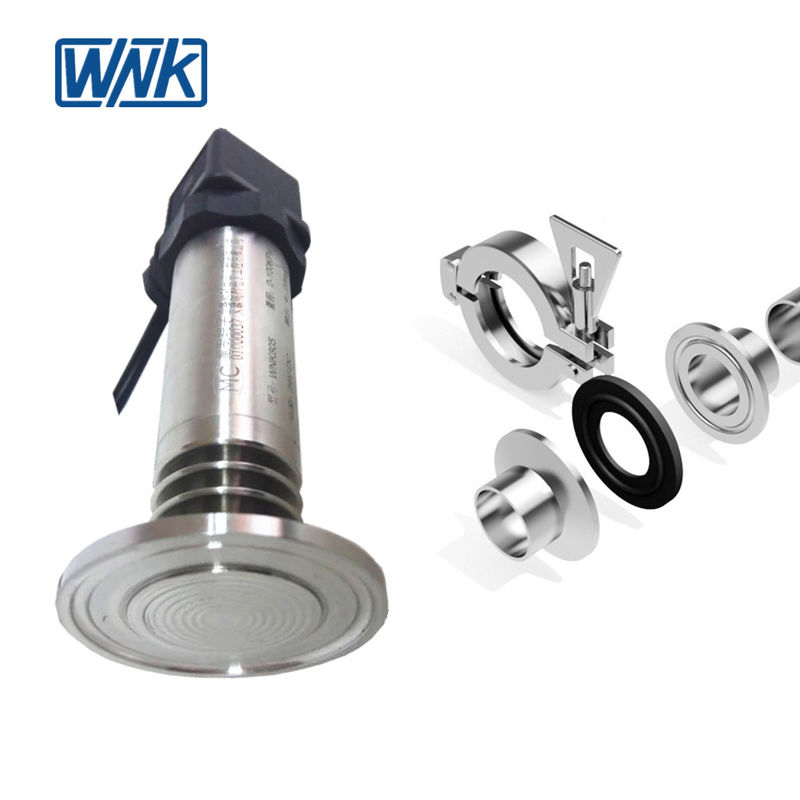

Tri-clamps are one of the most common types of pipe connections in the food, beverage, biotech, and pharmaceutical industries. This type of connection consists of a gasket compressed between two tri-clamp ferrules or flanges which are mechanically compressed in place with a clamp. Tri-clamp fittings are available in a variety of sizes, can be constructed from either steel or plastic, and can be either permanent or temporary. The clamp itself also comes in a variety of designs for ease of disassembly and cleaning.

It is therefore essential to select the right type of tri-clamp fitting to ensure the connection operates effectively in a given application. Choosing the right size and type of fitting can help minimize or eliminate contamination, bacterial growth, leaks, and deterioration of the connection material.

High Temperature Sanitary Clamp Flush Type Pressure Transmitter
Applicable media	Liquid, Gas, Steam
Pressure measurment	Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Pressure range	0-0.2 ...100kPa, 0-0.2 ...1000kpa, 60 MPa
Output signals	Typical output 4...20mA, 0.5...4.5VDC, For option: 1-5V, 0-5V, 0-10V DC
Accuracy	0.25%, 0.5%, 1.0%FS
Stability	±0.25% FS/year
Zero drift	50% of full range span.
Max overload	200% of sensor range
Display	LED (Optional)
Housing material	304SS, 316L
Mechanical connection	Clamp,Flush and Flange
Power supply	Non-explosion: 10.5~45V DC
Power supply	EEX ia:10.5~30 V DC
Ambient temperature	-40~85℃
Process temperature	-40~85℃

Features

- Standard ranges from vacuum to 60Mpa

- Accuracy up to ±0.25%

- 4-20 mA 2-wire output signal, others available

- Highly resistant to pressure spikes and vibration

- Stainless steel case and wetted parts

- Full range of process and electrical connections

- Assemble to diaphragm seals for special applications

- Suitable for gas, liquid, steam pressure measurement

- Intelligent digital circuit with precise temperature characteristic compensation

- Tantalum sensor contact for option for pressure measurement with corrosive media
