Name: WNK Submersible Hydrostatic Deep Well Water Level Sensor 4 - 20ma 0- 10V
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010-T1
Price: 417.00 USD
Availability: InStock

المنزل > المنتجات > Submersible Level Sensor >

WNK Submersible Hydrostatic Deep Well Water Level Sensor 4 - 20ma 0- 10V

WNK Submersible Well Water Level Sensor

0-10V Well Water Level Sensor

IP68 Well Water Level Sensor

مكان المنشأ:

خفى، الصين

اسم العلامة التجارية:

WNK

إصدار الشهادات:

CE, Rhos

رقم الموديل:

WNK8010-T1

اتصل بنا

اطلب اقتباس

Product Details

دقة:

0.25%، 0.5%، 1.0% خ

الإخراج:

4-20 مللي أمبير، 0-5 فولت، 1-5 فولت، التخصيص

المدى المقاس:

0-0.5 ~ 200mH2O

ماكس الزائد:

150% من نطاق الاستشعار

مواد الإسكان:

الفولاذ المقاوم للصدأ

فئة الحماية:

IP68

إبراز:

WNK Submersible Well Water Level Sensor

0-10V Well Water Level Sensor

IP68 Well Water Level Sensor

Payment & Shipping Terms

الحد الأدنى لكمية

1 لكل منهما

الأسعار

negotiable

تفاصيل التغليف

تغليف مخصص، تعبئة صالحة للطيران

وقت التسليم

5-7 أيام عمل

شروط الدفع

Western Union ، Moneygram ، T/T ، PayPal

IP68 Stainless steel Dirty Water Submersible Level Sensor

احصل على أفضل سعر

فيديو

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

احصل على أفضل سعر

فيديو

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485

احصل على أفضل سعر

فيديو

20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile

احصل على أفضل سعر

اتصل بنا

اتصل بنا الآن

Product Description

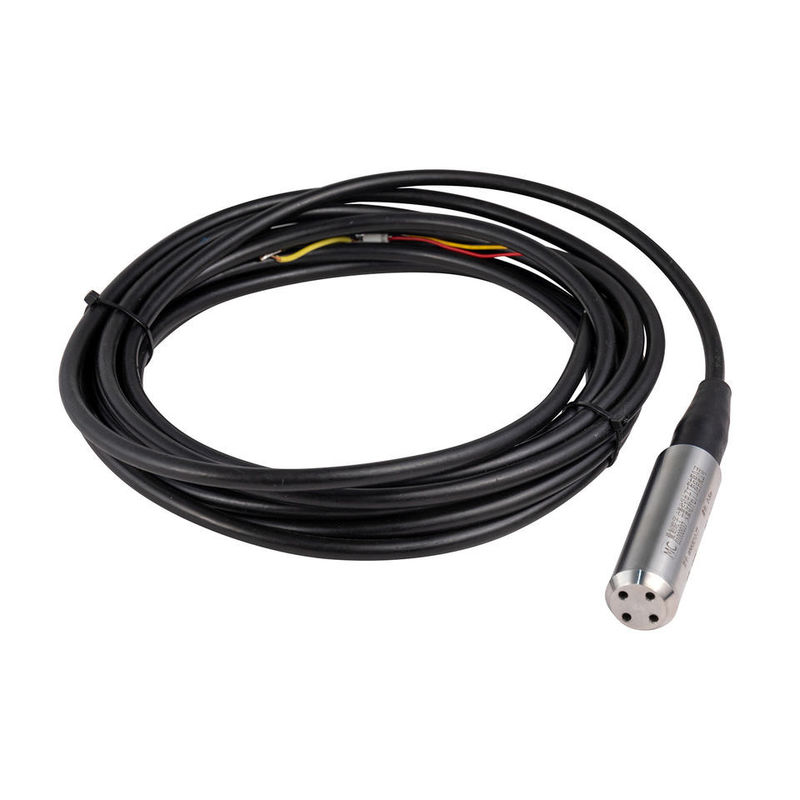

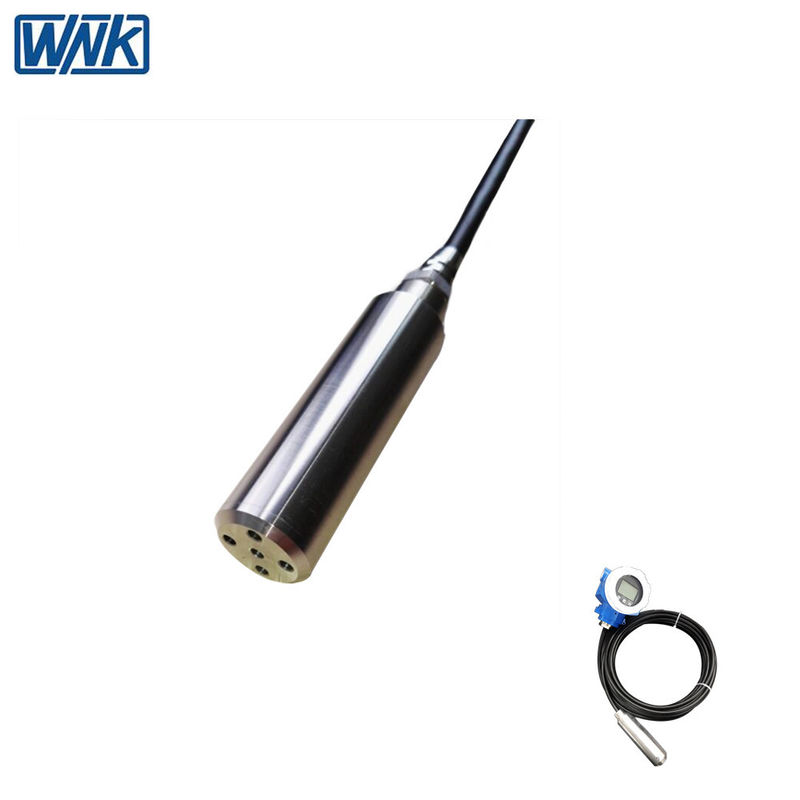

WNK Submersible 4-20ma 0-10V 0-200m Range Hydrostatic Deep Well Water Level Sensor

Product Description

Output	4-20mA, 0-5V, 1-5V, customization
Measured Range	0-0.5~200mH2O
Max overload	150% of sensor range
Applicable Media	Liquid, Water
Accuracy	≤ ±0.2%FS,
Long Term Stability	±0.25% FS/year
Housing Material	Stainless steel
Cable Material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Operating Temperature	-30~85℃
Compensation Temperature	-20~70℃
Protection Class	IP68

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of
ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure
transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to
0.25%FS/Year with high protection of IP68.

Applications
• Water tank level measurement and control.

• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by

customized.)

Features

• Adopting diffusion silicon oil-filled sensor

• Max measure range up to 200 meters or more

• High Stability, provide 0.1, 0.2, 0.5 accuracy for option

• Factory direct price

Ordering Code
Dimensions - IP68 Sumbersible Liquid Level Sensor
Product Show
